Brand Name : DF/OEM/Nuetral
Certification : CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin : China
MOQ : 1PCS
Price : US$0.2~0.75/PC
Payment Terms : Western Union,T/T,/Paypal
Supply Ability : 10000PCS/Day
Delivery Time : 3-9 working days depends on QTY
Packaging Details : Export Standard Packing

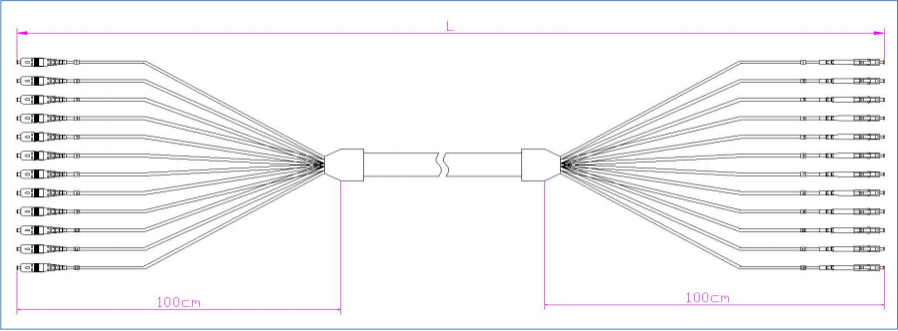

SC-LC 12F Patch Cord with 12.5mm Cable Diameter
| End face type | UPC and APC |
| Fiber type | SM(G652, G655, G657); MM(OM1-OM5) |
| Cable Diameter | 12.5mm (Fiber optic sub unit 2.0mm) |
| Insertion loss | ≤ 0.3dB |
| Return loss | UPC SM ≥ 50dB, APC SM ≥ 60dB, UPC MM ≥ 35dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC, LSZH, PU |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | Customized |
|
|
Ultra-High Density Patch Cord: SC-LC 12F with Innovative 2.0mm Micro-Tube Structure & Slim 12.5mm Cable Images |
