SC/APC FTTH Drop Cable Pigtail with G657A1 Fiber and LSZH Black Jacket for Reliable Connectivity

Name: SCAPC FTTH Drop Cable Pigtail with G657A1 Fiber and LSZH Black Jacket for Reliable Connectivity
Brand: Takfly
Price: 0.5 USD

Wholesale SC/APC FTTH Drop Cable Pigtail with G657A1 Fiber and LSZH Black Jacket for Reliable Connectivity from china suppliers

MOQ : 1

Price : US$0.5-US$100

Payment Terms : T/T

Supply Ability : 30000/Mon

Delivery Time : 3-12 work days

Brand Name : Takfly

Model Number : SM G657A1

Place of Origin : China

Contact Now

SC/APC FTTH Drop Cable Pigtail, SM G657A1, 5.0*2.0mm, LSZH Black Jacket

Product Overview

This Fast Connect drop cable features an anti-vibration design for plug-and-play deployment, enabling rapid installation without splicing. It ensures high network reliability and durability for FTTH applications.

Outline Drawing

SC/APC FTTH Drop Cable Pigtail with G657A1 Fiber and LSZH Black Jacket for Reliable Connectivity

Dust cap
Connector: SC/APC SM
Cable: SM G657A1 FTTH Drop Cable, Gray, LSZH jacket

Fiber Optic Specifications

Mode field diameter: 8.6μm ± 0.4μm at 1310nm
Cladding diameter: 125.0μm ± 0.7μm
Coating diameter: 245μm ± 10μm
Coating-cladding concentricity error: ≤12.5μm
Cut-off wavelength: ≤1260nm
Attenuation coefficient: 1310 ≤ 0.4dB, 1550 ≤ 0.3dB

Cable Construction

FTTH Cable Information

Number of fiber: 1 core
Fiber type: G657A1
Strength member material: Steel wire
Diameter: 0.45mm × 2

Self-Support Messenger Wire

Material: Steel wire
Diameter: 1.2mm

Outer Sheath

Material: LSZH Black
Cable size: 5.0 × 2.0mm

Connector Performance Specifications

Parameter	Specification
Type	SC/APC (1310)
Insertion Loss	≤0.3 dB + 0.36 dB/kmL(km) @ 1310nm ≤0.3 dB + 0.25 dB/kmL(km) @ 1550nm
Return Loss	≥60dB
Endface	IEC 61300-3-35
Durability (1000 Mating)	0.2dB Max. increase
Installation Temperature	-10℃ to +60℃
Operating Temperature	-25℃ to +70℃
Storage Temperature	-40℃ to +75℃
Cable Pull	90N

Optical Fiber Performance

Parameter	Long Term	Short Term
Tensile Strength (N)	300	600
Crush Load (N)	1100	2200
Wavelength (nm)	1310/1550
Attenuation (dB)	0.4/0.3
Cladding Diameter (μm)	125 ± 1
Cladding Non-Circularity	≤1.0%
Coating Diameter (μm)	242 ± 7

Schematic Drawing

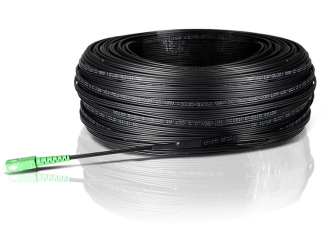

Product Image

Packaging

Stretch film packaging of the offered products packaging as shown below:

Product Tags:

SC/APC Connector Fiber Optic Pigtail

G657A1 Fiber FTTH Drop Cable Pigtail

LSZH Black Jacket SC/APC Pigtail
